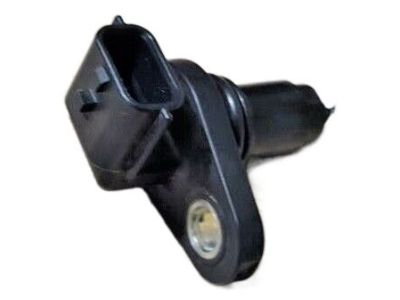

Nissan 31935-1XF00 Sensor Assembly-Revolution

You can Select Your Vehicle to check if 31935-1XF00 fits your vehicle.

The transaxle uses two speed sensors-the primary and secondary, on 2013 and earlier models/2014 and later Rogue Select models. The front side of the transaxle facing the radiator is home to the primary sensor. The secondary sensor is located on the left end of the transaxle case. Removing the left inner fender splash shield will facilitate your efforts if you want to replace a primary speed sensor while removing a battery and an air filter housing will be enough for taking out a second speed sensor. The electrical connector must be disconnected from this part to make it possible to remove it from mounting bolt. Discard O-ring. Apply some transmission fluid to new O-ring then install it on sensor.The installation is performed in reverse order as removal.On 2014 and later models (excluding Rogue Select models), it has three speed sensors; input speed, primary speed, and output speed sensor. On the front side of the transaxle facing the radiator is mounted input sensor. Located on the end of the transaxle facing left wheel is positioned primary speed sensor. Positioned just above left drive axle is output speed sensor.Remove battery and battery tray for input speed sensor.Remove starter motor.Disconnect electrical connector from this part.Remove mounting bolt then remove this part.Discard O-ring.Apply some transmission fluid to new O-ring then install it on sensor.The installation is performed in reverse order as removal.The other two are less complicated.They only require that you loosen several lug nuts, lift your car up with jacks or any available means and take off one or more wheels.This secures you when positioning them at their right places.Removing all these parts amounts to disconnecting some electronic fittings followed by taking out just one screw attached fastening.Finally, new O-ring needs lubrication before attaching it onto this part.As you can see, there are numerous similarities between these approaches.Are quite similar.Therefore, you can see that both methods are almost the same.

To replace the transmission speed sensors, first disconnect the electrical connector from the sensor. Then, remove the mounting bolt and remove the sensor, discarding the O-ring.

The output speed sensor on 2013 and later 4AT transaxles is located on the top of the transaxle. To replace it, you should disconnect the sensor electrical connector, raise the vehicle and support it securely on jackstands, work from the rear of the transaxle assembly, remove the sensor mounting bolt, and remove the speed sensor. Remember to discard the old O-ring and apply transmission fluid to the new O-ring during installation.

The primary speed sensor senses the speed of the primary pulley.
