6 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
  • 1.Front - *2WD+*4WD,4WD.(HD/T+T+K/CAB)

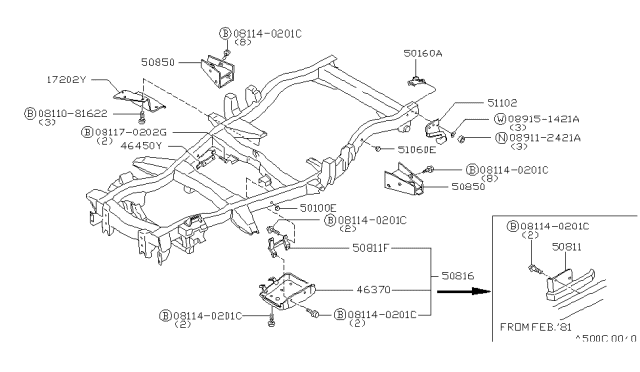

    1986 Nissan 720 Pickup Frame Diagram 1
  • 2.Inner Parts - 2WD

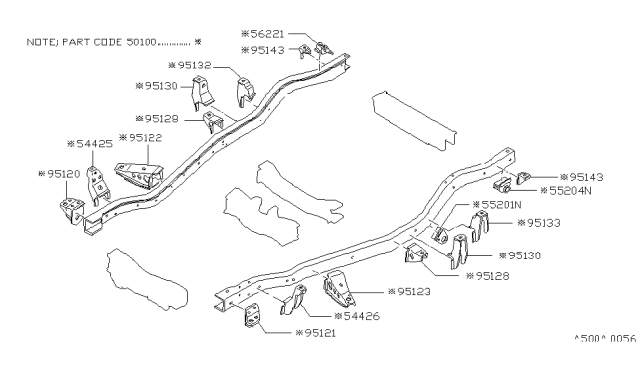

    1986 Nissan 720 Pickup Frame Diagram 2
  • 3.Inner Parts - 4WD.(D/CAB+DX/CAB+S/CAB.LB)+4WD.SB

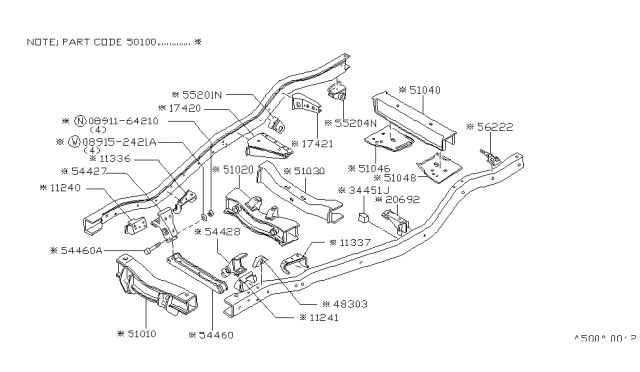

    1986 Nissan 720 Pickup Frame Diagram 3
  • 4.Outer Parts - 2WD

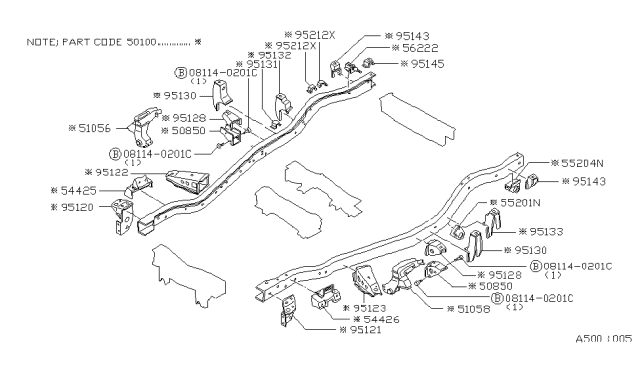

    1986 Nissan 720 Pickup Frame Diagram 4
  • 5.Outer Parts - 4WD.(D/CAB+DX/CAB+S/CAB.LB)+4WD.SB
    1986 Nissan 720 Pickup Frame Diagram 5
  • 6.Rear - *2WD+*4WD,4WD.(HD/T+T+K/CAB)
    1986 Nissan 720 Pickup Frame Diagram 6
Sort by:
Part Description
Lookup Code
Part No. & Part Description
Price
Part No. &
Part Description
  • Bolt
    50160A Nissan 51160-41W00
    51160-41W00
    Bolt
    • Fitting Vehicle Options:
      4WD
    MSRP: $9.35
    $6.43
    1
    Add To Cart
  • 50160A
    Nissan 51160-50W00
    51160-50W00
    Bolt
    • Fitting Vehicle Options:
      K/CAB + T. LONG. 4WD. (DX+ ST)
  • Bracket Assy-Rear Spring, Front
    55201N
    55201-01W02
    Bracket Assy-Rear Spring, Front
    • Fitting Vehicle Options:
      T. 2WD + K/CAB. 2WD + HD/T
    • Require Quantity:
      02
    • Package Quantity:
      1
  • 55201N
    55201-50W00
    Bracket Assy-Rear Spring, Front
    • Fitting Vehicle Options:
      4WD
    • Require Quantity:
      02
  • Bracket Assy-Rear Spring, Front LH
    55202
    Nissan 56222-41W05
    56222-41W05
    Bracket Assy-Rear Spring, Front LH
    • Location:
      Driver side
    • Fitting Vehicle Options:
      T. REG. 4WD
  • 55202
    Nissan 56222-41W15
    56222-41W15
    Bracket Assy-Rear Spring, Front LH
    • Location:
      Driver side
    • Fitting Vehicle Options:
      T. LONG. 4WD + K/CAB. 4WD
  • Bracket-Cab Mounting, 2nd RH
    95122
    Nissan 95122-01W00
    95122-01W00
    Bracket-Cab Mounting, 2nd RH
    CAB MOUNTING
    • Location:
      Passenger Side
    • Fitting Vehicle Options:
      T. 2WD + K/CAB. 2WD + HD/T
  • 95122 Nissan 95122-41W00
    95122-41W00
    Bracket-Cab Mounting, 2nd RH
    • Location:
      Passenger Side
    • Fitting Vehicle Options:
      4WD
  • Bracket-Engine Support, Front LH
    11241
    11241-09W10
    Bracket-Engine Support, Front LH
    • Location:
      Driver side
    • Fitting Vehicle Options:
      T. 2WD + K/CAB. 2WD + HD/T
  • 11241
    11241-50W10
    Bracket-Engine Support, Front LH
    • Location:
      Driver side
    • Fitting Vehicle Options:
      4WD
  • Bracket-Engine Support, Front RH
    11240
    11240-09W10
    Bracket-Engine Support, Front RH
    • Location:
      Passenger Side
    • Fitting Vehicle Options:
      T. 2WD + K/CAB. 2WD + HD/T
  • 11240
    11240-50W10
    Bracket-Engine Support, Front RH
    • Location:
      Passenger Side
    • Fitting Vehicle Options:
      4WD
  • 56122M
    56131-50W00
    Bracket-Front Shock Absorber, LH
    • Location:
      Driver side
  • 56122
    56130-50W00
    Bracket-Front Shock Absorber, RH
    • Location:
      Passenger Side
  • 34451J
    Nissan 36470-B5000
    36470-B5000
    Bracket-Guide
  • 54428
    Nissan 54451-09W00
    54451-09W00
    Bracket-Lower Mounting, LH
    • Location:
      Driver side
  • 54427
    54450-09W00
    Bracket-Lower Mounting, RH
    • Location:
      Passenger Side
  • Bracket-Muffler Mounting
    20692
    20692-01W03
    Bracket-Muffler Mounting
    • Fitting Vehicle Options:
      2WD. REG
  • 20692
    20692-01W10
    Bracket-Muffler Mounting
    • Fitting Vehicle Options:
      T. LONG. 2WD + K/CAB. 2WD + HD/T
  • Bracket-Rear Body Mounting, 2ND LH
    95133
    95133-01W00
    Bracket-Rear Body Mounting, 2ND LH
    REAR BODY MOUNTING
    • Fitting Vehicle Options:
      T. 2WD + K/CAB. 2WD + HD/LB + HD/W
  • 95133
    95133-41W01
    Bracket-Rear Body Mounting, 2ND LH
    • Location:
      Driver side
    • Fitting Vehicle Options:
      4WD
  • Bracket-Rear Body Mounting, 2ND RH
    95132 Nissan 95132-09W10
    95132-09W10
    Bracket-Rear Body Mounting, 2ND RH
    REAR BODY MOUNTING
    • Fitting Vehicle Options:
      FED. T. LONG + CAL. T. LONG + FED. K/CAB + CAL. K/CAB
    • Replaced By:
      95130-09W10
  • 95132
    Nissan 95132-41W01
    95132-41W01
    Bracket-Rear Body Mounting, 2ND RH
    • Location:
      Passenger Side
    • Fitting Vehicle Options:
      4WD
  • Bracket-Rear Body Mounting, 3RD
    95143
    Nissan 95143-41W00
    95143-41W00
    Bracket-Rear Body Mounting, 3RD
    • Fitting Vehicle Options:
      4WD
    • Require Quantity:
      02
  • 95143 Nissan 95143-B5010
    95143-B5010
    Bracket-Rear Body Mounting, 3RD
    REAR BODY MOUNTING
    • Fitting Vehicle Options:
      T. 2WD + K/CAB. 2WD + HD/LB + HD/W
    • Require Quantity:
      02
    • Package Quantity:
      1
  • 48303
    48303-01W05
    Bracket-Steering
  • Bracket-Valve
    46450Y
    46379-34W00
    Bracket-Valve
    • Fitting Vehicle Options:
      T. 2WD + K/CAB. 2WD + HD/T
  • 46450Y
    46379-48W00
    Bracket-Valve
    • Fitting Vehicle Options:
      4WD
  • 51060E
    Nissan 01658-00531
    Nissan 01658-00531
    01658-00531
    Clip
    • Require Quantity:
      08
    • Package Quantity:
      1
    • Replaced By:
      74816-AL500
    MSRP: $5.84
    $4.01
    1
    Add To Cart
  • Cover-Splash, RH
    50810 Nissan 50810-11W00
    50810-11W00
    Cover-Splash, RH
    • Location:
      Passenger Side
    • Fitting Vehicle Options:
      (T+ K/CAB). 2WD + HD/T
  • 50810
    Nissan 50810-31W05
    50810-31W05
    Cover-Splash, RH
    • Location:
      Passenger Side
    • Fitting Vehicle Options:
      SD25
  • 50810 Nissan 50810-50W00
    50810-50W00
    Cover-Splash, RH
    • Location:
      Passenger Side
    • Fitting Vehicle Options:
      4WD
    • Replaced By:
      E0810-50W00
  • Frame Assy
    50100
    Nissan 50100-09W05
    50100-09W05
    Frame Assy
    • Fitting Vehicle Options:
      2WD. REG
  • 50100
    Nissan 50100-09W06
    50100-09W06
    Frame Assy
    • Fitting Vehicle Options:
      2WD. LB
  • 50100
    Nissan 50100-09W07
    50100-09W07
    Frame Assy
    • Fitting Vehicle Options:
      K/CAB. 2WD
  • 50100
    Nissan 50100-09W08
    50100-09W08
    Frame Assy
    • Fitting Vehicle Options:
      2WD. (HD/T)
  • 50100
    Nissan 50100-50W05
    50100-50W05
    Frame Assy
    • Fitting Vehicle Options:
      T. REG. 4WD
  • 50100
    Nissan 50100-50W06
    50100-50W06
    Frame Assy
    • Fitting Vehicle Options:
      T. LONG. 4WD
  • 50100
    Nissan 50100-50W07
    50100-50W07
    Frame Assy
    • Fitting Vehicle Options:
      K/CAB. 4WD
  • Gusset-Cross Member, A
    51046
    Nissan 51042-01W00
    51042-01W00
    Gusset-Cross Member, A
    • Fitting Vehicle Options:
      T. REG. 4WD, Z24. AT + K/CAB. 2WD. Z24. MT. F5 + CAL. T. LONG. L20B. AT. DX
  • 51046 Nissan 51042-01W10
    51042-01W10
    Gusset-Cross Member, A
    • Fitting Vehicle Options:
      T. LONG. 2WD + K/CAB. 2WD + HD/T, T. LONG. 4WD + K/CAB. 4WD
  • Gusset-Cross Member, B
    51048
    Nissan 51043-01W00
    51043-01W00
    Gusset-Cross Member, B
    • Fitting Vehicle Options:
      T. REG. 4WD, Z24. AT + K/CAB. 2WD. Z24. MT. F5 + CAL. T. LONG. L20B. AT. DX
  • 51048 Nissan 51043-01W10
    51043-01W10
    Gusset-Cross Member, B
    • Fitting Vehicle Options:
      T. LONG. 2WD + K/CAB. 2WD + HD/T, T. LONG. 4WD + K/CAB. 4WD
  • Member Assy-3RD Cross
    51030 Nissan 51030-09W00
    51030-09W00
    Member Assy-3RD Cross
    • Fitting Vehicle Options:
      T. 2WD + K/CAB. 2WD + HD/T
  • 51030
    Nissan 51030-41W01
    51030-41W01
    Member Assy-3RD Cross
    • Fitting Vehicle Options:
      4WD
  • 95145
    Nissan 95197-41W00
    95197-41W00
    Reinforce-Cab Mounting, 4TH LH
    • Location:
      Driver side
    • Require Quantity:
      02
Standard Parts
Genuine Nissan Parts, the Right Choice
NissanPartsDeal.com offers the wholesale prices for genuine 1986 Nissan 720 Pickup parts. Parts like Frame are shipped directly from authorized Nissan dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.0L, 4 Cyl 2.2L, 4 Cyl 2.2L Diesel, 4 Cyl 2.4L, 4 Cyl 2.5L Diesel. Grade/Trim: DX, GL, ST, STD.
