4 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
- 1.Comb Meter and Clock - ALL - (01/1992-07/1993)
- 2.Comb Meter and Clock - ALL - (from 07/1993)

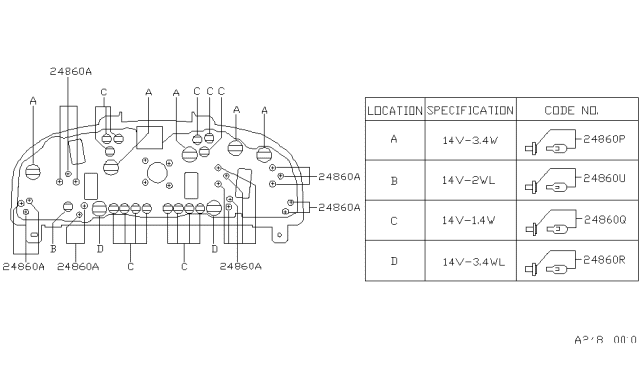

- 3.Socket and Bulb - ALL - (01/1992-07/1993)
- 4.Socket and Bulb - ALL - (from 07/1993)
Sort by:
Part Description
Lookup Code
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 25010A
- 25020A
$1.80 $1.24
- 25022
- Clip-Flexible Shaft25050D
25052-09G03
Clip-Flexible Shaft- Fitting Vehicle Options: FED. T. VG30E + FED. HD + FED. KC. VG30E + CAL. HD + CAL. KC. VG30E
- 25050D25052-10G01
Clip-Flexible Shaft- Fitting Vehicle Options: (FED+ CAL). KA24E. AT. (R4+ F4) + (FED+ CAL). (T+ KC). 4WD. KA24E
- Clip-Flexible Shaft25050E
25052-01G00
Clip-Flexible Shaft- Fitting Vehicle Options: (FED+ CAL). KA24E. AT. (R4+ F4) + (FED+ CAL). (T+ KC). 4WD. KA24E
- 25050E25052-01G11
Clip-Flexible Shaft- L=48
- Fitting Vehicle Options: (FED + CAL). (T + KC). 2WD. KA24E. MT. F5
- 25050E25052-07G00
Clip-Flexible Shaft- Fitting Vehicle Options: FED. T. VG30E + FED. HD + FED. KC. VG30E + CAL. HD + CAL. KC. VG30E
- 25050E25052-55G00
Clip-Flexible Shaft- L=120+75
- Fitting Vehicle Options: (FED + CAL). (T + KC). 2WD. KA24E. MT. F5
$18.65 $12.831
- 25051A
- Clock Assy-Digital25820
- 25820
- Cover-Front, Combination Meter24813
24813-74P00
Cover-Front, Combination Meter- F/TACHOMETER LESS
- Fitting Vehicle Options: *FED. KC. VG30E + *CAL. KC. VG30E, FED. T + FED. HD + FED. KC. KA24E + CAL. T + CAL. HD + CAL. KC. KA24E
- 2481324813-74P03
Cover-Front, Combination Meter- F/CLOCK-DIGITAL
F/TACHOMETER - Fitting Vehicle Options: *FED. KC. VG30E + *CAL. KC. VG30E, *FED. T + *FED. HD + *FED. KC. KA24E + *CAL. T + *CAL. HD + *CAL. KC. KA24E
- F/CLOCK-DIGITAL
- 2481324813-75P09
Cover-Front, Combination Meter- F/SPD MTR-MILE,RECT W/O TRIP&ODD MTR SW
- Fitting Vehicle Options: *FED. KC. 4WD. VG30E + *CAL. KC. 4WD. VG30E
- 24813
- Cover-Lid, Speedometer25010M
24813-57G00
Cover-Lid, Speedometer- Fitting Vehicle Options: FED. T + FED. HD + FED. KC. KA24E + CAL. T + CAL. HD + CAL. KC. KA24E
- 25010M
24813-57G02
Cover-Lid, Speedometer- F/TACHOMETER
- Fitting Vehicle Options: *FED. T + *FED. HD + *FED. KC. KA24E + *CAL. T + *CAL. HD + *CAL. KC. KA24E
- 25010M
- 25050A
- Housing-Combination Meter, Lower25031M
24811-57G00
Housing-Combination Meter, Lower- Fitting Vehicle Options: FED. T + FED. HD + FED. KC + CAL. T + CAL. HD + CAL. KC
- 25031M24811-73P00
Housing-Combination Meter, Lower- F/TACHOMETER LESS
- Fitting Vehicle Options: *FED. KC. VG30E + *CAL. KC. VG30E, CAL. T. 2WD. MT. F5 + CAL. T. 4WD + CAL. HD + CAL. KC. KA24E, FED. T. 2WD. MT. F5 + FED. T. 4WD + FED. HD + FED. KC. KA24E
- 25031M24811-73P02
Housing-Combination Meter, Lower- F/TACHOMETER
- Fitting Vehicle Options: *FED. T + *FED. HD + *FED. KC. KA24E + *CAL. T + *CAL. HD + *CAL. KC. KA24E, FED. T. AT. R4 + FED. KC. VG30E + CAL. T. AT. R4 + CAL. KC. VG30E
- Housing-Combination Meter, Upper25031
24812-57G00
Housing-Combination Meter, Upper- Fitting Vehicle Options: FED. T + FED. HD + FED. KC. KA24E + CAL. T + CAL. HD + CAL. KC. KA24E
- 25031
- 2503124812-73P00
Housing-Combination Meter, Upper- Fitting Vehicle Options: FED. T + FED. HD + FED. KC + CAL. T + CAL. HD + CAL. KC
- Lens-Warning Lamp68435
24880-73P00
Lens-Warning Lamp- Fitting Vehicle Options: CAL. KC. 4WD. VG30E. MT. F5 + CAL. KC. KA24E, FED. KC. KA24E + CAL. T + CAL. HD + CAL. KC. 2WD. VG30E, FED. T + FED. HD + FED. KC. 2WD. VG30E + FED. KC. 4WD. VG30E. MT. F5
- 68435
- Lens-Warning Lamp68435M
24880-57G00
Lens-Warning Lamp- Fitting Vehicle Options: FED. T + FED. HD + FED. KC. KA24E + CAL. T + CAL. HD + CAL. KC. KA24E
- 68435M
- 68435M24885-73P00
Lens-Warning Lamp- Fitting Vehicle Options: FED. T + FED. HD + FED. KC + CAL. T + CAL. HD + CAL. KC
- Lens-Warning Lamp68435N
24890-75P00
Lens-Warning Lamp- Fitting Vehicle Options: FED. T + FED. HD + FED. KC + CAL. T + CAL. HD + CAL. KC
- 68435N24890-86P00
Lens-Warning Lamp- F/SPD MTR-MILE,RECT W/O TRIP&ODD MTR SWITCH
- Fitting Vehicle Options: *FED. KC. 4WD. AT. F4 + *CAL. KC. 4WD. AT. F4
- Lens-Warning Lamp68435P
25021-01G05
Lens-Warning Lamp- Fitting Vehicle Options: FED. T. 2WD + FED. HD + FED. KC. 2WD + CAL. T. 2WD + CAL. HD + CAL. KC. 2WD
- 68435P
- Lens-Warning Lamp68435Q
- 68435Q
- 68435R
- 68437M
- Mask-Meter24881J24865-57G00
Mask-Meter- Fitting Vehicle Options: FED. T + FED. HD + FED. KC. KA24E + CAL. T + CAL. HD + CAL. KC. KA24E
- 24881J
- 24881V
- 24860
- Meter Assy-Water & Fuel24830
24835-73P02
Meter Assy-Water & Fuel- F/CLOCK-DIGITAL
F/TACHOMETER - Fitting Vehicle Options: *CAL. T. 2WD. MT. F5 + *CAL. T. 4WD + *CAL. HD + *CAL. KC. KA24E, *FED. KC. VG30E + *CAL. KC. VG30E, *FED. T. 2WD. MT. F5 + *FED. T. 4WD + *FED. HD + *FED. KC. KA24E
- F/CLOCK-DIGITAL
- 24830
- 2483024835-84P01
Meter Assy-Water & Fuel- Fitting Vehicle Options: FED. T. AT. R4 + CAL. T. AT. R4
- Replaced By: 24835-73P05
- Meter Assy-Water Temperature24880
24835-57G00
Meter Assy-Water Temperature- Fitting Vehicle Options: FED. T + FED. HD + FED. KC + CAL. T + CAL. HD + CAL. KC
- 2488024835-73P00
Meter Assy-Water Temperature- F/TACHOMETER LESS
- Fitting Vehicle Options: *FED. KC. VG30E + *CAL. KC. VG30E, CAL. T. 2WD. MT. F5 + CAL. T. 4WD + CAL. HD + CAL. KC. KA24E, FED. T. 2WD. MT. F5 + FED. T. 4WD + FED. HD + FED. KC. KA24E
- 2488024835-73P02
Meter Assy-Water Temperature- F/CLOCK-3HAND,QUARTZ W/O CALNDR
F/SPD MTR-MILE,RECT W/O TRIP&ODD MTR SWITCH - Fitting Vehicle Options: *FED. KC. 4WD. VG30E + *CAL. KC. 4WD. VG30E, *FED. KC. VG30E + *CAL. KC. VG30E
- 24850B
$2.67 $1.841
- 24853
- Plate Assy-Printed Circuit25030
24814-57G00
Plate Assy-Printed Circuit- Fitting Vehicle Options: (FED+ CAL). (T+ HD). MT. F5 + (FED+ CAL). KC. KA24E. MT. F5
- 2503024814-57G01
Plate Assy-Printed Circuit- Fitting Vehicle Options: T. AT. R4 + HD. AT. F4 + KC. KA24E. AT. F4 + FED. T. 4WD. AT. F4
- 2503024814-57G02
Plate Assy-Printed Circuit- F/TACHOMETER
- Fitting Vehicle Options: *(FED+ CAL). (T+ HD). MT. F5 + *(FED+ CAL). KC. KA24E. MT. F5
- Replaced By: 24814-57G06
- 2503024814-57G03
Plate Assy-Printed Circuit- F/TACHOMETER
- Fitting Vehicle Options: *(FED+ CAL). (T+ HD). AT + *(FED+ CAL). KA24E. AT. F4
- Replaced By: 24814-57G07
- 2503024814-57G06
Plate Assy-Printed Circuit- Fitting Vehicle Options: FED. KC. VG30E. MT. F5 + CAL. KC. VG30E. MT. F5
- 2503024814-57G07
Plate Assy-Printed Circuit- Fitting Vehicle Options: FED. KC. VG30E. AT. F4 + CAL. KC. VG30E. AT. F4
- 2503024814-75P00
Plate Assy-Printed Circuit- F/TACHOMETER LESS
- Fitting Vehicle Options: *CAL. KC. 4WD. VG30E. MT. F5, *FED. KC. 2WD. VG30E + *FED. KC. 4WD. VG30E. MT. F5 + *CAL. KC. 2WD. VG30E, CAL. T. 2WD. MT. F5 + CAL. T. 4WD + CAL. HD + CAL. KC. KA24E, FED. T. 2WD. MT. F5 + FED. T. 4WD + FED. HD + FED. KC. KA24E
- 2503024814-75P01
Plate Assy-Printed Circuit- F/TACHOMETER LESS
- Fitting Vehicle Options: *FED. KC. 4WD. AT. F4 + *CAL. KC. 4WD. AT. F4
- 2503024814-75P02
Plate Assy-Printed Circuit- F/CLOCK-DIGITAL
F/TACHOMETER - Fitting Vehicle Options: *CAL. KC. 4WD. VG30E. MT. F5, *CAL. T. 2WD. MT. F5 + *CAL. T. 4WD + *CAL. HD + *CAL. KC. KA24E, *FED. KC. 2WD. VG30E + *FED. KC. 4WD. VG30E. MT. F5 + *CAL. KC. 2WD. VG30E, *FED. T. 2WD. MT. F5 + *FED. T. 4WD + *FED. HD + *FED. KC. KA24E
- F/CLOCK-DIGITAL
- 2503024814-75P04
Plate Assy-Printed Circuit- F/CLOCK-3HAND,QUARTZ W/O CALNDR
- Fitting Vehicle Options: *FED. KC. 4WD. AT. F4 + *CAL. KC. 4WD. AT. F4
- 25030
- 2503024814-75P08
Plate Assy-Printed Circuit- F/TACHOMETER
- Fitting Vehicle Options: *FED. T. AT. R4 + *CAL. T. AT. R4
- 2503024814-75P09
Plate Assy-Printed Circuit- F/SPD MTR-MILE,RECT W/O TRIP&ODD MTR SWITCH
- Fitting Vehicle Options: *FED. KC. 4WD. VG30E. MT. F5 + *CAL. KC. 4WD. VG30E. MT. F5
- 2503024814-75P20
Plate Assy-Printed Circuit- Fitting Vehicle Options: CAL. KC. 4WD. VG30E. MT. F5, FED. KC. 2WD. VG30E + FED. KC. 4WD. VG30E. MT. F5 + CAL. KC. 2WD. VG30E
- 2503024814-75P21
Plate Assy-Printed Circuit- Fitting Vehicle Options: FED. KC. 4WD. AT. F4 + CAL. KC. 4WD. AT. F4
- 2503024814-75P24
Plate Assy-Printed Circuit- F/SPD MTR-MILE,RECT W/O TRIP&ODD MTR SWITCH
- Fitting Vehicle Options: *FED. KC. 4WD. AT. F4 + *CAL. KC. 4WD. AT. F4
- 25050P
$2.82 $1.941
- 25023N
- Protector-Speedometer Cable25056M
25056-01G00
Protector-Speedometer Cable- Fitting Vehicle Options: (FED+ CAL). KA24E. AT. (R4+ F4) + (FED+ CAL). HD + (FED+ CAL). (T+ KC). 4WD
- 25056M25056-01G01
Protector-Speedometer Cable- Fitting Vehicle Options: (FED + CAL). (T + KC). 2WD. KA24E. MT. F5
- 24850A
$1.80 $1.24
- 24860A
- 24869G
- 25030D
$1.80 $1.24
- 25050M
$2.82 $1.941
- 25050N
$1.67 $1.2510
- 25080X
$36.75 $25.261
- Shaft Assy-Flexible, Speedometer25050
25050-31G01
Shaft Assy-Flexible, Speedometer- Fitting Vehicle Options: FED. T. VG30E + FED. KC. 4WD. VG30E + CAL. KC. 4WD. VG30E
$237.11 $163.011 - 25050
25050-01G10
Shaft Assy-Flexible, Speedometer- Fitting Vehicle Options: (FED + CAL). (T + KC). KA24E. AT. (R4 + F4)
- 25050
25050-01G06
Shaft Assy-Flexible, Speedometer- Fitting Vehicle Options: (FED + CAL). (HD + KC). 2WD. VG30E. MT. F5
- 2505025050-01G07
Shaft Assy-Flexible, Speedometer- Fitting Vehicle Options: (FED + CAL). (HD + KC). 2WD. VG30E. AT. F4
- 2505025050-01G11
Shaft Assy-Flexible, Speedometer- Fitting Vehicle Options: (FED + CAL). (T + KC). 2WD. KA24E. MT. F5
- Replaced By: (MultiSupersession)
- 2505025050-31G10
Shaft Assy-Flexible, Speedometer- Fitting Vehicle Options: FED. T. 4WD. KA24E + FED. KC. 4WD. KA24E + CAL. T. 4WD + CAL. KC. 4WD. KA24E
- 24860P
24860-35F00
Socket & Bulb Assy- 14V-3.4W
14V-3.4W F/TACHOMETER
14V-3.4W F/TACHOMETER LESS
14V-3.4W ORANGE - Require Quantity: 04
- Package Quantity: 1
$24.02 $16.511
- Socket & Bulb Assy24860Q
24860-40F01
Socket & Bulb Assy- 14V-1.4W
14V-1.4W BROWN
14V-1.4W F/TACOMETER LESS - Fitting Vehicle Options: *CAL. KC. 4WD. VG30E. MT. F5, *FED. KC. 2WD. VG30E + *FED. KC. 4WD. VG30E. MT. F5 + *CAL. KC. 2WD. VG30E, *FED. KC. 4WD. AT. F4 + *CAL. KC. 4WD. AT. F4, CAL. T. 2WD. MT. F5 + CAL. T. 4WD + CAL. HD + CAL. KC. KA24E, FED. KC. 4WD. AT. F4 + CAL. KC. 4WD. AT. F4, FED. KC. VG30E + CAL. KC. VG30E, FED. T + FED. HD + FED. KC. KA24E + CAL. T + CAL. HD + CAL. KC. KA24E, FED. T. 2WD. MT. F5 + FED. T. 4WD + FED. HD + FED. KC. KA24E, FED. T. AT. R4 + CAL. T. AT. R4
- Require Quantity: 10
- Package Quantity: 1
$17.58 $12.091 - 24860Q26260-01G00
Socket & Bulb Assy- 14V-1.4W
14V-1.4W F/CLOCK-DIGITAL - Fitting Vehicle Options: *FED. KC. 4WD. AT. F4 + *CAL. KC. 4WD. AT. F4, CAL. KC. 4WD. VG30E. MT. F5, FED. KC. 2WD. VG30E + FED. KC. 4WD. VG30E. MT. F5 + CAL. KC. 2WD. VG30E
- Require Quantity: 11
- Package Quantity: 1
- Replaced By: (MultiSupersession)
- 14V-1.4W
- 24860R
$9.75 $6.701
- 24860U
24860-40F02
Socket & Bulb Assy- 14V-2WL
14V-2WL BLUE
14V-2WL BLUE F/TACHOMETER
14V-2WL F/CLOCK-DIGITAL
14V-2WL F/TACHOMETER - Require Quantity: 07
- Package Quantity: 1
- Speedometer Assy24850
24820-75P00
Speedometer Assy- Production Date: from 07/1993
- Fitting Vehicle Options: FED. T + FED. HD + FED. KC. KA24E + CAL. T + CAL. HD + CAL. KC. KA24E
- Replaced By: 24820-75P01
- 2485024820-57G00
Speedometer Assy- Production Date: 01/1992-07/1993
- Fitting Vehicle Options: FED. T + FED. HD + FED. KC. KA24E + CAL. T + CAL. HD + CAL. KC. KA24E
- Replaced By: 24820-70P00
- 2485024820-57G02
Speedometer Assy- F/TACHOMETER
- Fitting Vehicle Options: *FED. T + *FED. HD + *FED. KC. KA24E + *CAL. T + *CAL. HD + *CAL. KC. KA24E
- Replaced By: 24820-70P02
- 2485024820-57G06
Speedometer Assy- Fitting Vehicle Options: FED. KC. VG30E + CAL. KC. VG30E
- Replaced By: 24820-70P06
- 2485024820-75P01
Speedometer Assy- F/SPD MTR-MILE,RECT W/O TRIP&ODD MTR SWITCH
- Fitting Vehicle Options: *FED. KC. 4WD. VG30E + *CAL. KC. 4WD. VG30E, FED. KC. VG30E + CAL. KC. VG30E
- 2485024820-75P02
Speedometer Assy- F/CLOCK-3HAND,QUARTZ W/O CALNDR
F/TACHOMETER - Fitting Vehicle Options: *CAL. KC. 4WD. VG30E. MT. F5, *FED. KC. 2WD. VG30E + *FED. KC. 4WD. VG30E. MT. F5 + *CAL. KC. 2WD. VG30E, *FED. T. AT. R4 + *FED. HD + *CAL. T. AT. R4 + *CAL. HD
- Replaced By: 24820-75P03
- F/CLOCK-3HAND,QUARTZ W/O CALNDR
- 2485024820-75P03
Speedometer Assy- F/CLOCK-3HAND,QUARTZ W/O CALNDR
F/TACHOMETER - Fitting Vehicle Options: *CAL. T. 4WD + *CAL. KC. KA24E, *FED. KC. 4WD. AT. F4 + *CAL. KC. 4WD. AT. F4, *FED. T. 2WD. MT. F5 + *FED. T. 4WD + *FED. KC. KA24E + *CAL. T. 2WD. MT. F5
- F/CLOCK-3HAND,QUARTZ W/O CALNDR
- Tachometer Assy24855
24825-57G02
Tachometer Assy- F/TACHOMETER
- Fitting Vehicle Options: *FED. T. KA24E + *FED. KC. KA24E + *CAL. T + *CAL. KC. KA24E
- 2485524825-57G04
Tachometer Assy- F/TACHOMETER
- Fitting Vehicle Options: *FED. T. VG30E + *FED. HD + *CAL. HD, FED. KC. VG30E + CAL. KC. VG30E
- 2485524825-74P05
Tachometer Assy- F/TACHOMETER
- Fitting Vehicle Options: *FED. T + *FED. KC. KA24E + *CAL. T + *CAL. KC. KA24E
- Replaced By: 24825-74P06
- 2485524825-74P07
Tachometer Assy- F/SPD MTR-MILE,RECT W/O TRIP&ODD MTR SWITCH
F/TACHOMETER - Fitting Vehicle Options: *FED. HD + *CAL. HD, *FED. KC. 4WD. VG30E + *CAL. KC. 4WD. VG30E, FED. KC. VG30E + CAL. KC. VG30E
- 25020R
- 25025M
